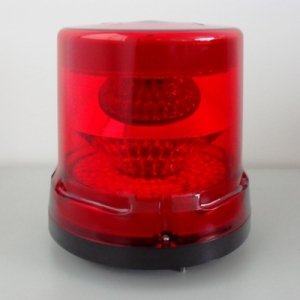

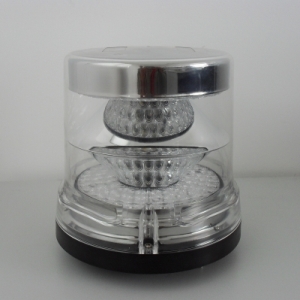

LED Beacon
Description
With a creative design and application of the latest in patent technology, the LED beacon provides a continuous and even light in a horizontal 360º manner. Its performance is safe, highly efficient, and reliable. Installation is easy and convenient.
- BL100-A-DIN
- BL100-BL
- BL100-R
- LB130-A
- LB130-BL
- LB130-R
- LB130-W
- 155-I
- 155-II
Specification:
Operating Voltage: DC9~33V
Light source: 12*3W high power LEDs
Light color: amber, blue, red light or other customized light
360° strobe, built-in flasher with 9 flash light patterns (optional), PC programmable control
Comply with ECE R65 requirements, including standard quad flash, double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher
Compliance with ECE R10.04 for EMC
Optional flash light pattern, by using the White wire to touch the Black wire“-”
Multiple LED warning beacons may be connected to provide synchronous or alternate flash patterns
Reverse polarity protection
UV resistant PC outer lens and base
Aluminum alloy die-cast bottom with powder coated finish and stainless steel hardware
IP67 protection grade

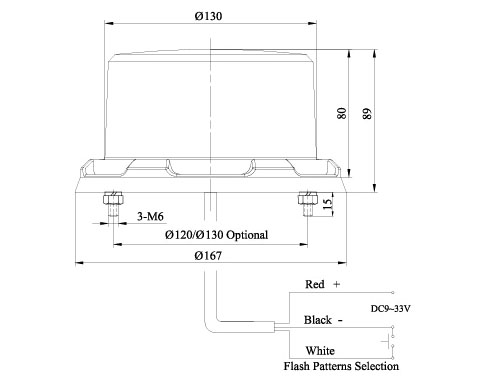

Fixation: permanent mounting, magnetic base with Cig plug adapter and single pole plug meeting DIN72591(ISO 4165) standard
Specification:
Operating Voltage: DC9~33V
Light source: 12*3W high power LEDs
Light color: amber, blue, red light or other customized light
360° strobe, built-in flasher with 9 flash light patterns (optional), PC programmable control
Comply with ECE R65 requirements, including standard quad flash, double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher
Compliance with ECE R10.04 for EMC
Optional flash light pattern, by using the White wire to touch the Black wire“-”
Multiple LED warning beacons may be connected to provide synchronous or alternate flash patterns
Reverse polarity protection
UV resistant PC outer lens and base
Aluminum alloy die-cast bottom with powder coated finish and stainless steel hardware
IP67 protection grade
Fixation: permanent mounting, magnetic base with Cig plug adapter and single pole plug meeting DIN72591(ISO 4165) standard
Specification:
Operating Voltage: DC9~33V
Light source: 12*3W high power LEDs
Light color: amber, blue, red light or other customized light
360° strobe, built-in flasher with 9 flash light patterns (optional), PC programmable control
Comply with ECE R65 requirements, including standard quad flash, double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher
Compliance with ECE R10.04 for EMC
Optional flash light pattern, by using the White wire to touch the Black wire“-”
Multiple LED warning beacons may be connected to provide synchronous or alternate flash patterns
Reverse polarity protection
UV resistant PC outer lens and base
Aluminum alloy die-cast bottom with powder coated finish and stainless steel hardware
IP67 protection grade
Fixation: permanent mounting, magnetic base with Cig plug adapter and single pole plug meeting DIN72591(ISO 4165) standard
Specification:
Operating voltage: DC9～33V
Operating temperature: -40℃～ 65℃
Light source: high efficiency LEDs; amber, blue, red or other customized color
Lens material: UV resistant lens
Lens color: clear, amber, blue, red
Housing: aluminium alloy die casting housing with powder coated finish
IP 67 with reverse polarity protection
Photometric performance: comply with ECE R65 CLASS1 and SAE J845 requirements
E-mark approved
Optional flashing patterns: 360°stroble, built-in flasher with 8 flash light patterns, including standard quad flash and double flash
Mounting type: fixed mounting via screws or with magnetic base (optional) or DIN mount
Specification:
Operating voltage: DC9～33V
Operating temperature: -40℃～ 65℃
Light source: high efficiency LEDs; amber, blue, red or other customized color
Lens material: UV resistant lens
Lens color: clear, amber, blue, red
Housing: aluminium alloy die casting housing with powder coated finish
IP 67 with reverse polarity protection
Photometric performance: comply with ECE R65 CLASS1 and SAE J845 requirements
E-mark approved
Optional flashing patterns: 360°stroble, built-in flasher with 8 flash light patterns, including standard quad flash and double flash
Mounting type: fixed mounting via screws or with magnetic base (optional) or DIN mount
Specification:
Operating voltage: DC9～33V
Operating temperature: -40℃～ 65℃
Light source: high efficiency LEDs; amber, blue, red or other customized color
Lens material: UV resistant lens
Lens color: clear, amber, blue, red
Housing: aluminium alloy die casting housing with powder coated finish
IP 67 with reverse polarity protection
Photometric performance: comply with ECE R65 CLASS1 and SAE J845 requirements
E-mark approved
Optional flashing patterns: 360°stroble, built-in flasher with 8 flash light patterns, including standard quad flash and double flash
Mounting type: fixed mounting via screws or with magnetic base (optional) or DIN mount
Specification:
Operating voltage: DC9～33V
Operating temperature: -40℃～ 65℃
Light source: high efficiency LEDs; amber, blue, red or other customized color
Lens material: UV resistant lens
Lens color: clear, amber, blue, red
Housing: aluminium alloy die casting housing with powder coated finish
IP 67 with reverse polarity protection
Photometric performance: comply with ECE R65 CLASS1 and SAE J845 requirements
E-mark approved
Optional flashing patterns: 360°stroble, built-in flasher with 8 flash light patterns, including standard quad flash and double flash
Mounting type: fixed mounting via screws or with magnetic base (optional) or DIN mount
Specification:
Operating Voltage:DC9~33V
Light source:12*3W high power LEDs
Light color:comply with ECE R65 requirements，amber, blue, red light or other customized light 360°strobe, Built-in Flasher with 9 Flash light patterns(optional), PC programmable control, comply with ECE R65 requirements ,including standard quad flash,double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher Compliance with ECE R10.04 for EMC Option Flash light pattern, by using the White wire to touch the Black wire"-" Multiple beacons may be connected to provide synchronous or alternate flash patterns. Reverse polarity protection
UV resistant of PC outer lens and Base
Aluminum alloy die-cast bottom, with powder coated finished, stainless steel hardware
IP67 Rated ;
Fixed: permanent mount, magnetic base with Cig plug adapter and single pole plug to spec. DIN72591 (ISO 4165)
Specification:
Operating Voltage:DC9~33V
Light source:12*3W high power LEDs
Light color:comply with ECE R65 requirements，amber, blue, red light or other customized light 360°strobe, Built-in Flasher with 9 Flash light patterns(optional), PC programmable control, comply with ECE R65 requirements ,including standard quad flash,double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher Compliance with ECE R10.04 for EMC Option Flash light pattern, by using the White wire to touch the Black wire"-" Multiple beacons may be connected to provide synchronous or alternate flash patterns. Reverse polarity protection
UV resistant of PC outer lens and Base
Aluminum alloy die-cast bottom, with powder coated finished, stainless steel hardware
IP67 Rated ;
Fixed: permanent mount, magnetic base with Cig plug adapter and single pole plug to spec. DIN72591 (ISO 4165)
Applications:
The LED warning beacon is most often found on emergency vehicles, boats, road safety signs, navigation lanterns and obstacle lights on buildings.
