Round LED Interior Lamp

Description

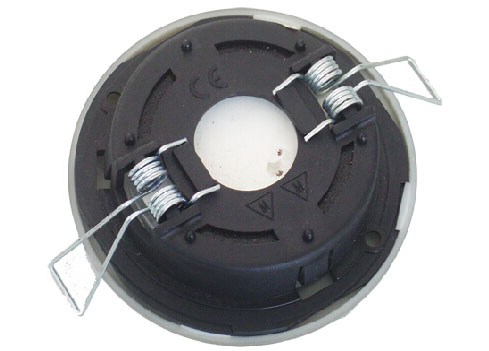

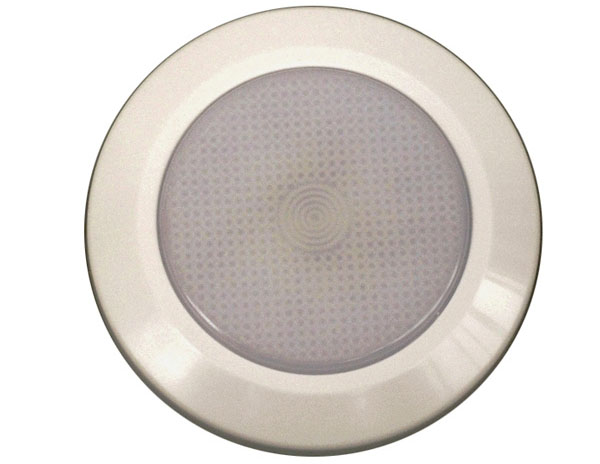

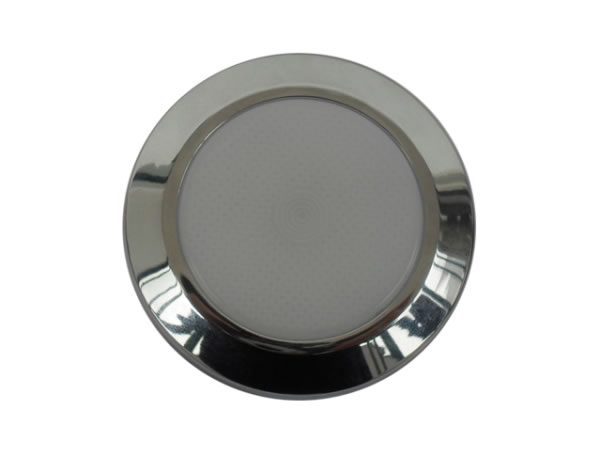

The LED indoor lamp and ceiling light is ideal for interior lighting applications on vehicles. The round LED lamp's milky lens provides a smooth and even light output. The aluminum base ensures an excellent heat dissipation, and extends the service life of the LED light. This round LED interior lamp can be flush mounted using screws, or fixed with a spring (product code IDL60F1) for easier installation.

Product selection:
  • DL Series
  • IDL60F2
  • IDL60M
  • IDL60A
  • IDL60C

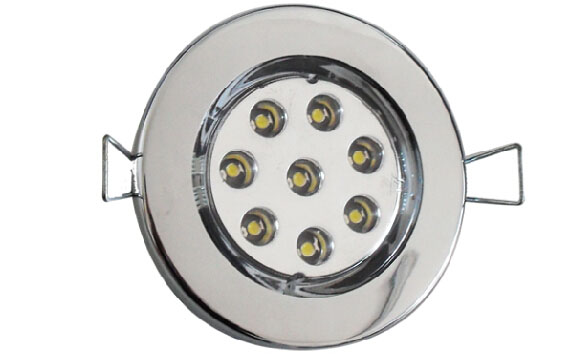

  • IDL60F1
  • IDL60MT
  • IDL60S
  • IDL60S-F
  • IDL60ST
  • IDL60T

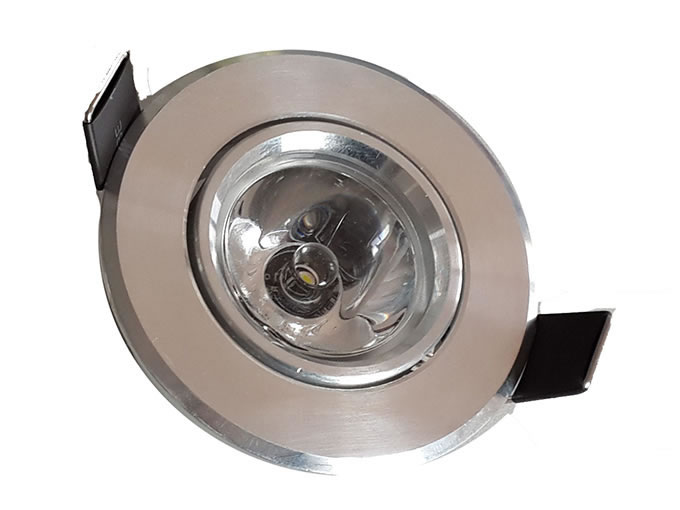

DL Series
  • DL-1
Inquiry Form

Specifications
Operating Voltage: 10~30VDC
Light Source: Power LED
Light Emitting Angle: 60° or 45°
Light color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white
Operating Temperature: -40~60℃

P/N LED Power Luminous Flux Hole size

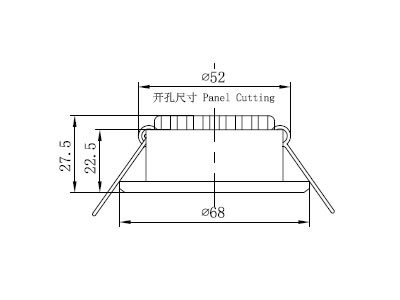

DL-1 1 pcs 2W max 180 lm Φ52mm
DL-3 3 pcs 3W 360 lm Φ68mm
IDL60F2
Inquiry Form

Specification:
Operating Voltage: DC12V,DC24V,10~33VDC
Operating Temperature:-40~60℃
Light Source:high light efficiency SMT LEDs ,CRI＞80
Power: 2.5W;Operating Current: 0.21A @12VDC; 0.12A@24V
Light Color: ~3000K warm white, 4000~4500K natural white,6000~6500K pure white,Blue;RGB
Luminous Flux:＞250lm
Luminous angle:160° flood type;
IP54
Optional frame color: White, Chromed, Silver, Gold, RAL 7048 frame
CE approval

IDL60M
Inquiry Form

Specification:
Operating Voltage: DC12V, DC24V
Operating Temperature: -40~60℃
Light Source: high light efficiency SMT LEDs, CRI＞80
Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white
IP67
Optional frame color: White, Chromed, Silver, Gold, RAL 7048 frame

IDL60A
Inquiry Form

Specification:
Operating Voltage: DC12V, DC24V
Operating Temperature: -40~60℃
Light Source: high light efficiency SMT LEDs, CRI ＞80%
Light Color: 3000K warm white, 4000~4500K natural white, 6000~6500K pure white
IP67
Optional frame color: White, Chromed, Silver, Gold, RAL 7048 frame
CE approved

IDL60C
Inquiry Form

Specification:
Operating Voltage: DC12V, DC24V
Operating Temperature: -40~60℃
Light Source: high light efficiency SMT LEDs, CRI ＞80%
Light Color: 3000K warm white, 4000~4500K natural white, 6000~6500K pure white
IP67
Optional frame color: White, Chromed, Silver, Gold, RAL 7048 frame
CE approved

IDL60F1
Inquiry Form

Specification:
Operating Voltage: DC12V,DC24V,10~33VDC
Operating Temperature:-40~60℃
Light Source:high light efficiency SMT LEDs ,CRI＞80
Power: 2.5W;Operating Current: 0.21A @12VDC; 0.12A@24V
Light Color: ~3000K warm white, 4000~4500K natural white,6000~6500K pure white,Blue;RGB
Luminous Flux:＞250lm
Luminous angle:160° flood type;
IP54
Optional frame color: White, Chromed, Silver, Gold, RAL 7048 frame
CE approval

IDL60MT
Inquiry Form

Specification:
Operating Voltage: DC12V, DC24V
Operating Temperature: -40~60℃
Light Source: high light efficiency SMT LEDs, CRI＞80
Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white
IP67
Optional frame color: White, Chromed, Silver, Gold, RAL 7048 frame

IDL60S
Inquiry Form

Specification:
Operating Voltage: 12VDC, 24VDC, DC10~33V
Operating Temperature: -40~55℃
Light Source: 24PCS of high light efficiency SMT LED, CRI＞80
Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white, red, blue, green, amber, RGB, etc.
Luminous Flux: ~200lm
Light Emitting Angle: 160°, floodlight type
Operating Current: 0.15A@12VDC；0.075A@24VDC
Power: max. 1.8W
IP67
Ring color: white, chromed or customized color
Clear lens or milky lens (optional)
CE approved

IDL60S-F
Inquiry Form

Specification:
Operating Voltage: 12VDC, 24VDC, DC10~33V
Operating Temperature: -40~55℃
Light Source: 24pcs of high light efficiency SMT LED, CRI＞80
Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white, red, blue, green, amber, RGB, etc.
Luminous Flux: ~200lm
Light Emitting Angle: 160°, floodlight type
Operating Current: 0.15A@12VDC, 0.075A@24VDC
Power: max.1.8W
IP67
Ring color: white, chromed or customized color
Clear lens or milky lens (optional)
CE approved

IDL60ST
Inquiry Form

Specification:
Operating Voltage: 12VDC, 24VDC, DC10~33V
Operating Temperature: -40~55℃
Light Source: 24pcs of high light efficiency SMT LED, CRI＞80
Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white, red, blue, green, amber, RGB, etc.
Luminous Flux: ~200lm
Light Emitting Angle: 160°, floodlight type
Operating Current: 0.15A@12VDC, 0.075A@24VDC
Power: max. 1.8W
IP67
Ring color: white, chromed or customized color
Clear lens or milky lens (optional)
CE approved

IDL60T
Inquiry Form

Specification:
Operating Voltage: DC12V, DC24V
Operating Temperature: -40~60℃
Light Source: high light efficiency SMT LEDs, CRI ＞80%
Light Color: 3000K warm white, 4000~4500K natural white, 6000~6500K pure white
IP67
Optional frame color: White, Chromed, Silver, Gold, RAL 7048 frame
CE approved

Applications

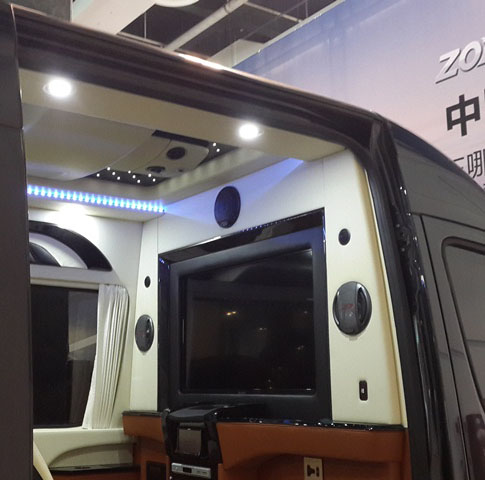

The round LED interior lamp is widely used in busses, cabins, motor homes, caravans, refrigerator cars, and special vehicles.
