LED Dome Light

Description

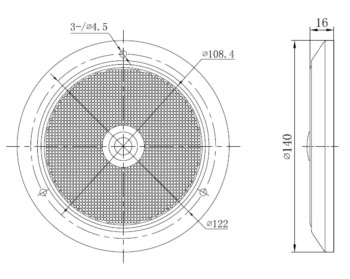

The LED dome light is surface mounted and features a slim design. The dome light has an outer diameter of Φ140mm, and features an optional milky lens for a smooth and even lighting. The LED light has excellent illumination effects, and also has an optional clear lens for an even higher lighting efficiency.

Product selection:
  • IDL140S
  • IDL140-F
  • IDL140S-F
  • IDL180S
  • IDL180-F
  • IDL180S-F

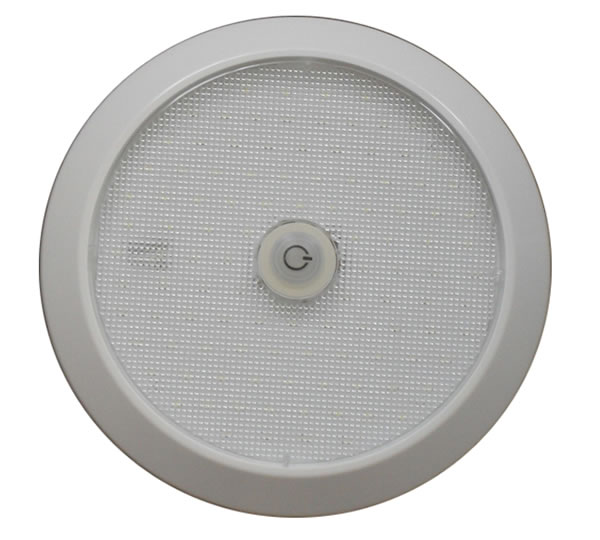

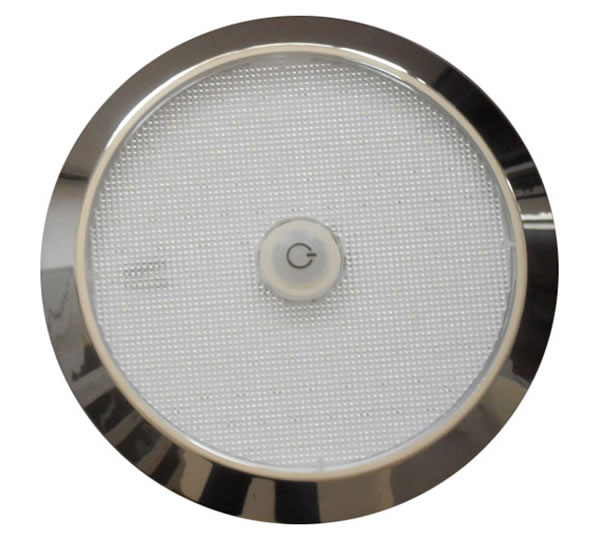

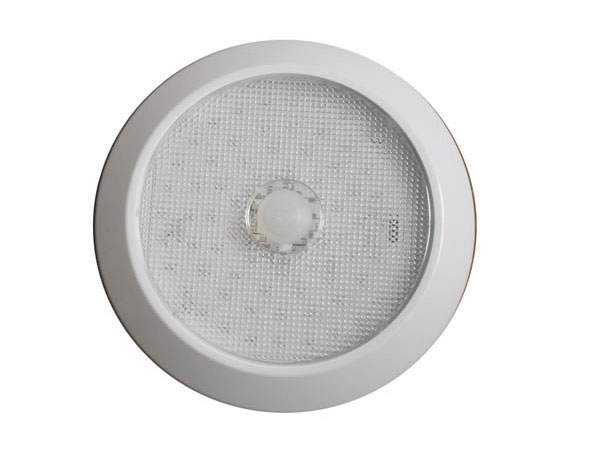

IDL140S (Clear lens, with switch)
Inquiry Form

Specification:
Operating Voltage: 10~33VDC
Operating Temperature: -40~55℃
Light Source: 72PCS of high light efficiency SMT LEDs; CRI＞80
Power: ~5W max，Operating Current: 0.40A @12VDC； 0.20A @ 24VDC
Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white (optional);
Or other customized color，Blue light for night is available
Luminous Flux: 500lm
Light Emitting Angle: 160°, floodlight type;
IP66
Frame color: white、chromed or customized color
Clear or milky outer lens (optional)
CE Approval

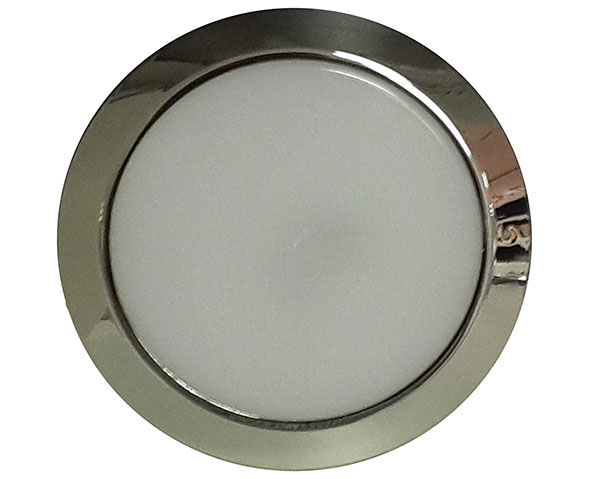

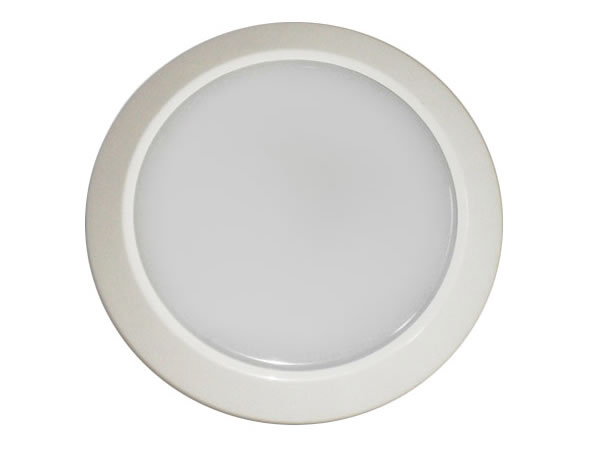

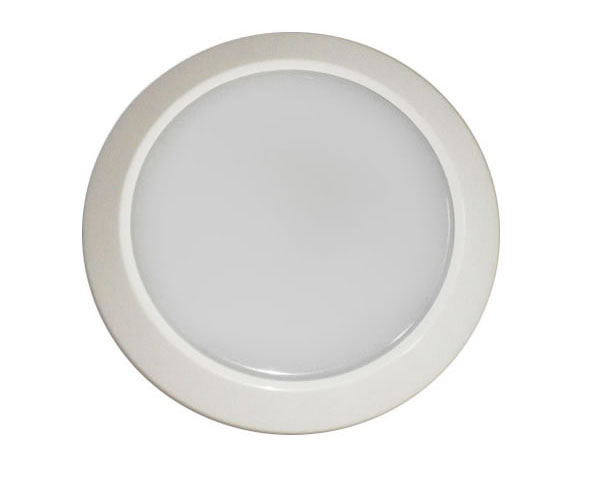

IDL140-F (Milky lens)
Inquiry Form

Specification:
Operating Voltage: 10~33VDC
Operating Temperature: -40~55℃
Light Source: 72PCS of high light efficiency SMT LEDs; CRI＞80
Power: ~5W max，Operating Current: 0.40A @12VDC; 0.20A @ 24VDC
Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white (optional);
Or other customized color, Blue light for night is available
Luminous Flux: 500lm
Light Emitting Angle: 160°, floodlight type;
IP66
Frame color: white、chromed or customized color
Clear or milky outer lens (optional)
CE Approval

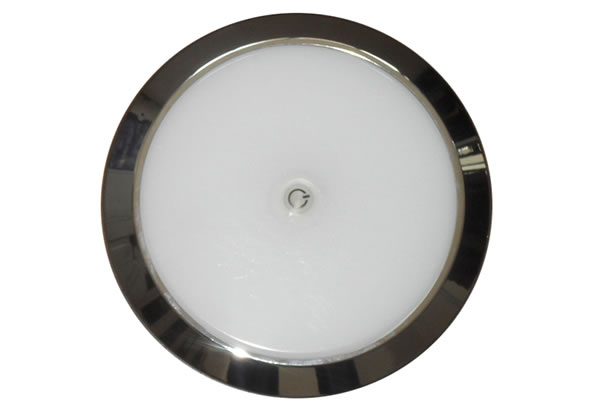

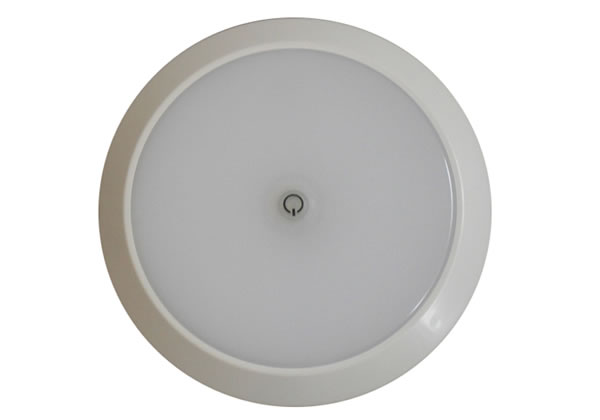

IDL140S-F (Milky lens, with switch)
Inquiry Form

Specification:
Operating Voltage: 10~33VDC
Operating Temperature: -40~55℃
Light Source: 72PCS of high light efficiency SMT LEDs; CRI＞80
Power: ~5W max，Operating Current: 0.40A @12VDC； 0.20A @ 24VDC
Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white (optional);
Or other customized color，Blue light for night is available
Luminous Flux: 500lm
Light Emitting Angle: 160°, floodlight type;
IP66
Frame color: white、chromed or customized color
Clear or milky outer lens (optional)
CE Approval

IDL180S (Clear lens, with switch)
IDL180S.pdf
Inquiry Form

Specification:
Operating Voltage: 10~33VDC
Operating Temperature: -40~55℃
Light Source: 108PCS of high light efficiency SMT LEDs，CRI＞80
Power: ~8.5W max Operating Current: 0.7A @12VDC, 0.35A @ 24VDC
Light Color (optional):~3000K warm white, 4000~4500K natural white, 6000~6500K pure white ;
Or other customized color，Blue light for night is available
Luminous Flux: 850lm
Light Emitting Angle: 160°floodlight type;
IP66
Frame color: white、chromed or customized color
Optional Clear or milky outer lens
CE Approval

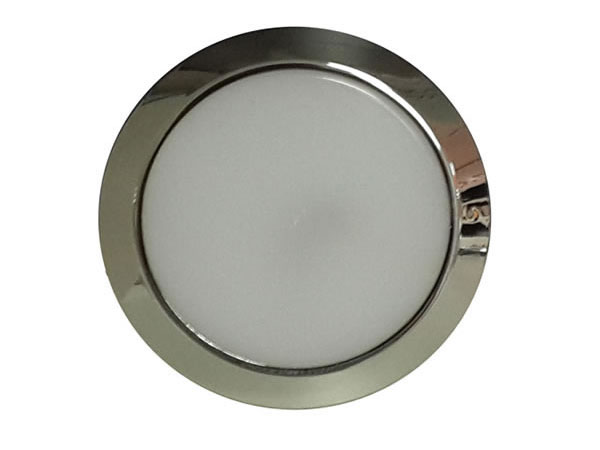

IDL180-F(Milky lens)
Inquiry Form

Specification:
Operating Voltage: 10~33VDC
Operating Temperature: -40~55℃
Light Source: 108PCS of high light efficiency SMT LEDs, CRI＞80
Power: ~8.5W max Operating Current: 0.7A @12VDC, 0.35A @ 24VDC
Light Color(optional):~3000K warm white, 4000~4500K natural white, 6000~6500K pure white ;
Or other customized color，Blue light for night is available
Luminous Flux: 850lm
Light Emitting Angle: 160°floodlight type;
IP66
Frame color: white、chromed or customized color
Optional Clear or milky outer lens
CE Approval

IDL180S-F (Milky lens, with switch)
Inquiry Form

Specification:
Operating Voltage: 10~33VDC
Operating Temperature: -40~55℃
Light Source: 108pcs of high light efficiency SMT LEDs, CRI＞80
Power: max. 8.5W
Operating Current: 0.7A @12VDC, 0.35A @ 24VDC
Light Color (optional): ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white, or other customized color; blue light for night is available
Luminous Flux: 850lm
Light Emitting Angle: 160° floodlight type
IP66
Frame color: white, chromed or customized color
Optional clear or milky outer lens
CE approved

Applications

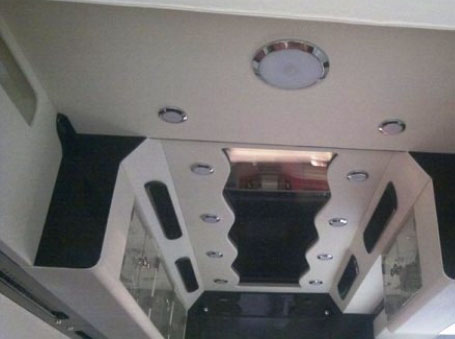

The LED dome light is widely used in shelters, cabins busses, caravans, refrigerator cars, and specialty vehicles.
