Side Marker Lamp

Description
With its slim design and creative structure, the side marker lamp meets ADR special requirements, garnering ADR approval. The LED lamp also meets ECE, SAE and GB requirements.

Product selection:
  • AL28-SMR
  • AL1080-SMR
  • AL1080C-SMR-AR
  • AL1080C-SMR
  • AL27-SMR
  • AL30-SM
  • AL130-SMR

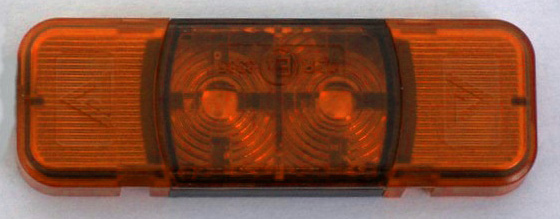

AL28-SMR
AL28-SMR
Inquiry Form

Specification:
Operating Voltage:DC12V,DC24V,DC9~33V
Operating temperature:-40~65℃
Light Source: 2pcs of high light efficiency SMT LEDs Amber light
IP67
Comply with ECE/ADR/SAE/GB requirements
E-Mark Approval
Fixed: 3M adhesive tape, easier to fix

Applications:
The side marker lamp is used on busses, trailers, trucks, recreational vehicles and special vehicles.

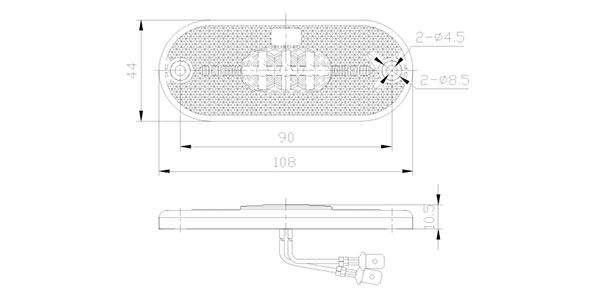

AL1080-SMR
Inquiry Form

Specification:
Operating voltage: DC12V or DC24V
Operating temperature: -40℃～ 65℃
Light source: 5pcs of super flux SMT LEDs
Lens: amber lens with retro reflector
Photometric performance: comply with ECE R3, R91 & SAE J592, J594 requirements
IP67, polarity-free
E-mark approved

Applications:
The side marker lamp is used on busses, trailers, trucks, recreational vehicles and special vehicles.

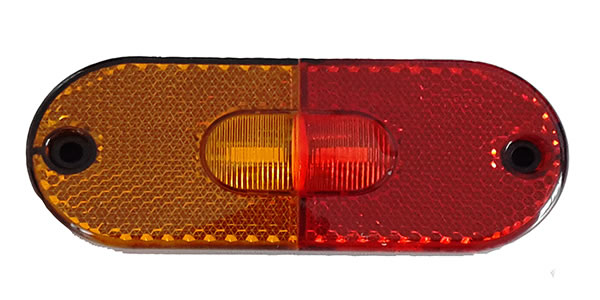

AL1080C-SMR-AR
Inquiry Form

Specification:
Operating Voltage: DC12V, DC24V, DC9~33V
Operating Temperature: -40~65℃
UV resistant PMMA outer lens
IP67
Comply with ECE/ADR/SAE/GB requirements
ADR approval

Applications:
The side marker lamp is used on busses, trailers, trucks, recreational vehicles and special vehicles.

AL1080C-SMR
Inquiry Form

Specification:
Operating Voltage: DC12V, DC24V, DC9~33V
Operating Temperature: -40~65℃
UV resistant PMMA outer lens
IP67
Comply with ECE/ADR/SAE/GB requirements
ADR approved

Applications
This selection of side marker lamp is compatible with buses, trucks, recreational vehicles and special vehicles.

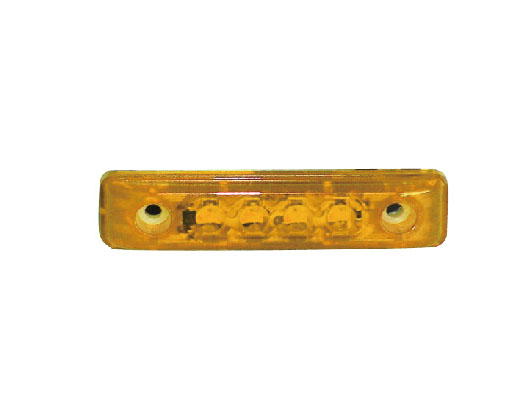

AL27-SMR
Inquiry Form

Specification:
Operating voltage: DC12V or DC24V
Operating temperature: -40℃~ 65℃
Light source: 4pcs of high light efficiency LEDs, amber light
Lens: amber lens
Photometric performance: comply with ECE R91 and SAE J592 requirements
E-MARK approved
IP67

Applications:
The side marker lamp is used on busses, trailers, trucks, recreational vehicles and special vehicles.

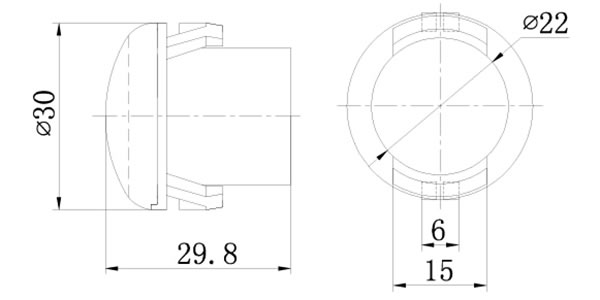

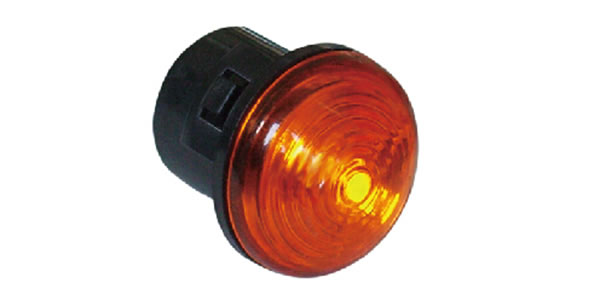

AL30-SM
Inquiry Form

Specification:
Operating voltage: DC12V or DC24V, or DC9~33V
Operating temperature: -40℃~65℃
Light source: super flux SMT LEDs
Lens: amber lens
Photometric performance: comply with ECE R91 & SAE J592 requirements
IP67
E-mark approved!

Applications:
The side marker lamp is used on busses, trailers, trucks, recreational vehicles and special vehicles.

AL130-SMR
Inquiry Form

Specification:
Operating Voltage:DC12V,DC24V,DC9~33V
Operating temperature:-40~65℃
Light Source: 3pcs of high light efficiency SMT LEDs Amber light
IP67
Comply with ECE/ADR/SAE/GB requirements
E-Mark Approval
Fixed: 3M adhesive tape, easier to fix

Applications:
The LED side marker lamp is widely used on buses, trailers, trucks, recreational vehicles, and special vehicles.
