Front Position Lamp

Description

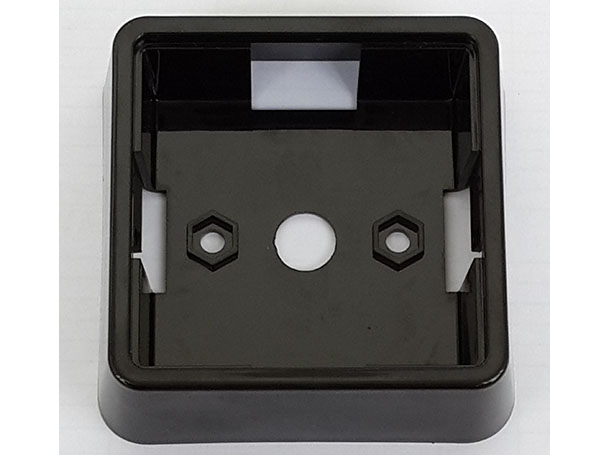

The front position lamp is mounted next to the car's headlights to light the corners of the car, illuminating the curb or other obstacles. Consisting of a single LED auto lamp and a decorative ring, placing the lamp and the ring together gives the vehicle a better appearance. The color of the decorative ring can be customized to match the vehicle it will be attached to.

  • C90T-FDI/FPL/DRL
  • C95-FDI
  • C95B-FDI
  • A80-FDI
  • A80B-FDI

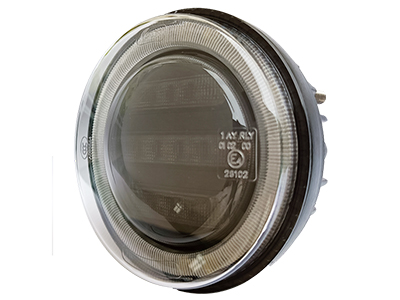

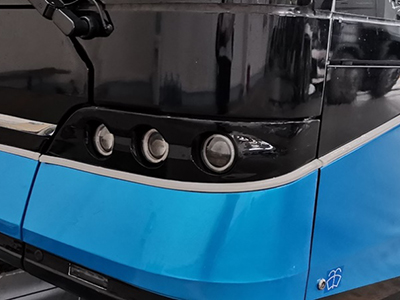

C90T-FDI/FPL/DRL

Specification:

  • Function: combination of front direction indicator, front position light, daytime running light (used with HL90ii headlight or HF90 front fog light) (three groups of corona rings)
  • Operating voltage: 10~33V
  • Operating temperature: -40~80°C
  • Power consumption: FDI~5W, FPL ~3*1W, DRL ~3*4W
  • Comply with ECE R6, R7, R87; GB17509, GB5920, GB23255
  • EMC: ECE R10 &CIS PR25
  • IP67
  • E-mark & CCC certified

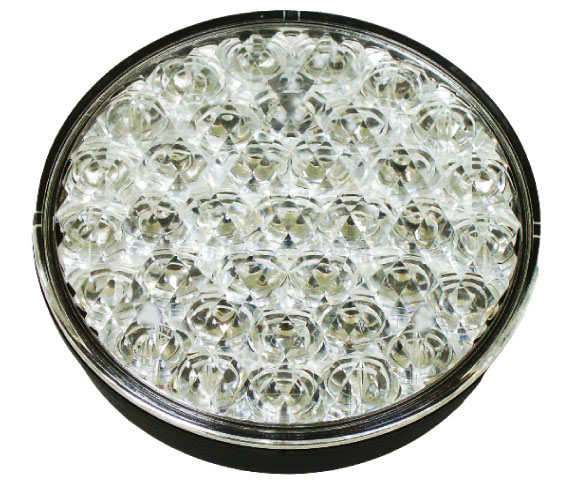

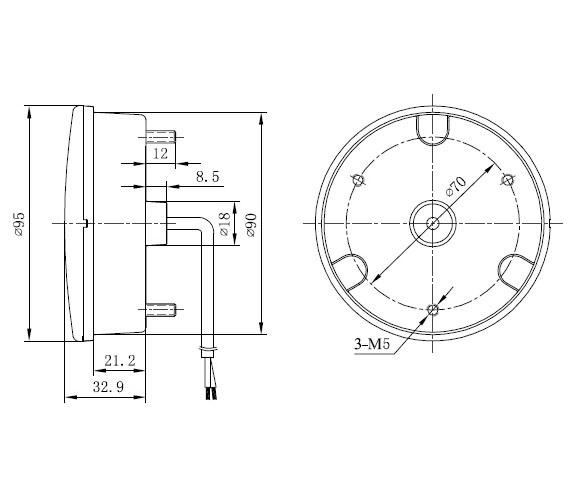

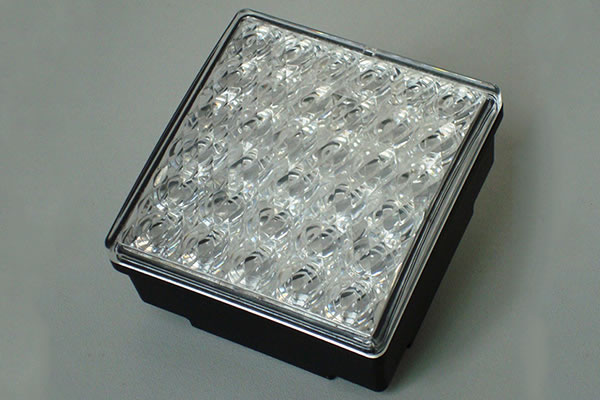

C95-FDI

Specification:
Operating voltage: DC12V or DC24V;
Operating temperature: -40°C~ 65°C
Light source: 32 super flux LEDs, amber;
Lens color: clear or amber;
Photometric performance: comply with ECE/ADR/SAE/GB requirements;
IP67;
E-MARK approved

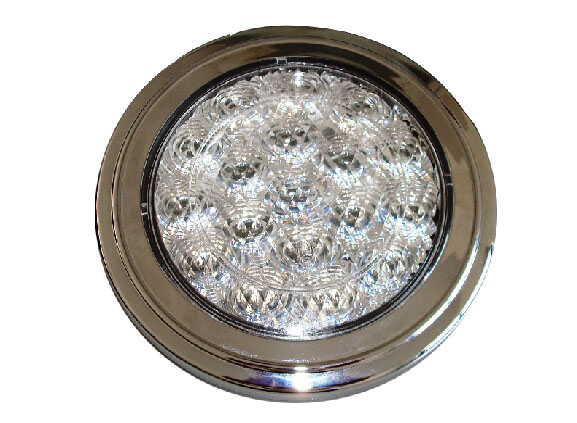

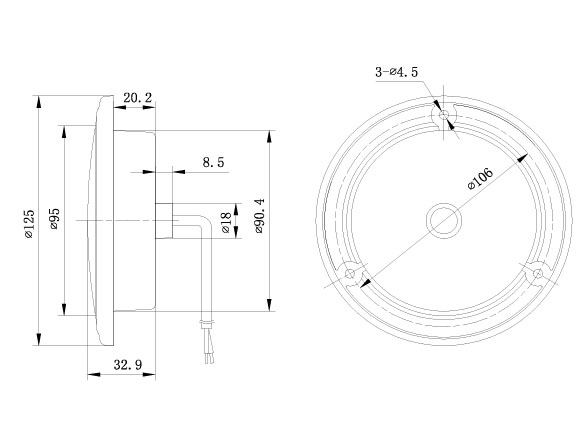

C95B-FDI

Specification:
Operating voltage: DC12V or DC24V;
Operating temperature: -40°C~ 65°C
Light source: 32 super flux LEDs, amber;
Lens color: clear or amber;
Photometric performance: comply with ECE/ADR/SAE/GB requirements;
IP67;
E-MARK approved

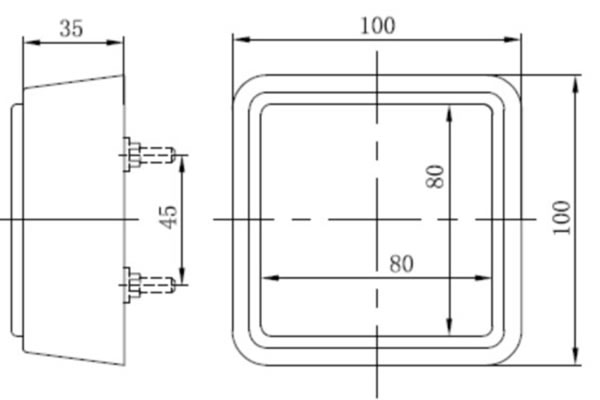

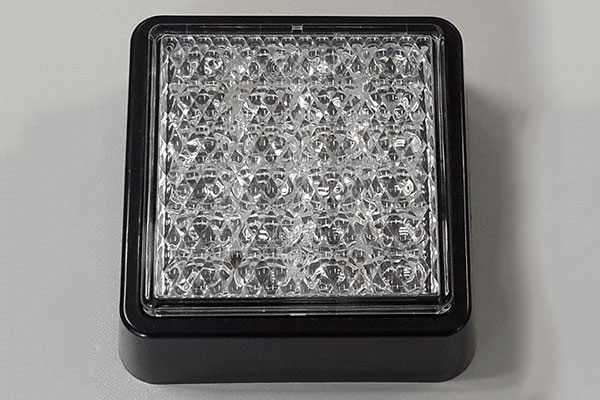

A80-FDI

Specification:
Operating voltage: DC12V or DC24V, DC9~33V
Operating temperature: -40°C~ 65°C
Light source: super flux LEDs, amber
Lens color: clear or amber
Photometric performance: Comply with ECE/ADR/SAE/GB requirements
IP67
E-Mark approved

A80B-FDI

Specification:
Operating voltage: DC12V or DC24V, DC9~33V
Operating temperature: -40°C~ 65°C
Light source: super flux LEDs, amber
Lens color: clear or amber
Photometric performance: Comply with ECE/ADR/SAE/GB requirements
IP67
E-Mark approved

Applications:

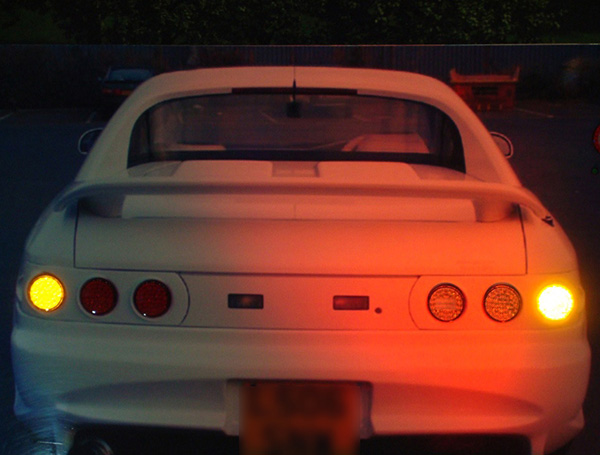

The front position LED lamp is widely used on busses, trailers, trucks, recreational vehicles and specialized vehicles.
