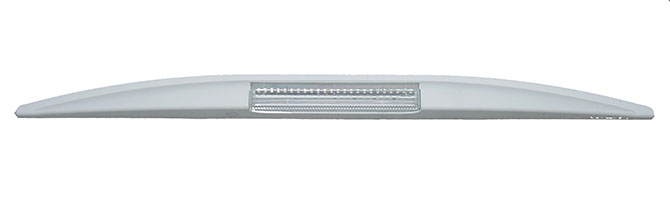

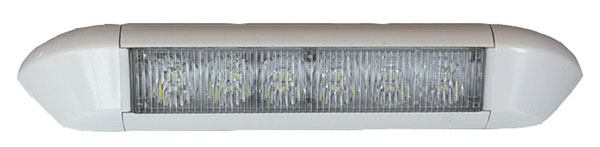

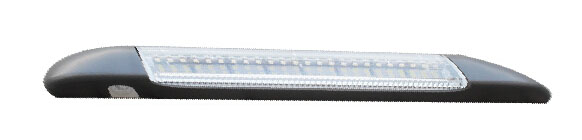

Awning Entrance Lamp/Vehicle Side Light

Description
A 40 degree downward illumination in the vehicle side light provides efficient lighting for the ground and door to the vehicles. The surface mount installation meets IP67 standard, and the precision die-cast aluminum base ensures an excellent heat dissipation and longer lamp life.

• ADL013
• ADL013-S
• ADL014
• SW-09
• SW-16
• ASW01

ADL013

•
•

Inquiry Form

ADL013-S

Inquiry Form

ADL014

Inquiry Form

SW-09

•
•

Inquiry Form

SW-16

•
•

Inquiry Form

ASW01

•
•

Inquiry Form

Specification:
Operating Voltage:10~33VDC
Operating Temperature:-40~65℃
Light Source: 9*3W high light efficiency LED;CRI＞80
Light Color:~3000K warm white, 4000~4500K natural white, 6000~6500K pure white
Luminous Flux:﹥1200lm

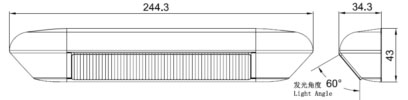

Light Emitting Angle:H80°/60°
Power: ~14W/18W,Operating Current:1.2A@12VDC; 0.65A@24VDC
PC lens with UV-resistant;

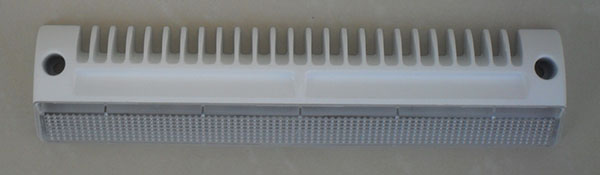

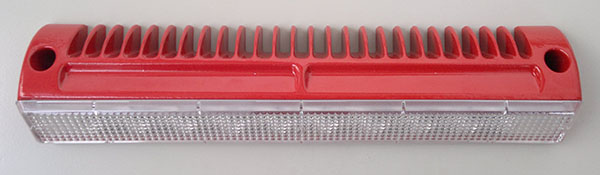

Aluminum die casting Base in white / black / red (optional) or other customized color;
IP67

Applications:

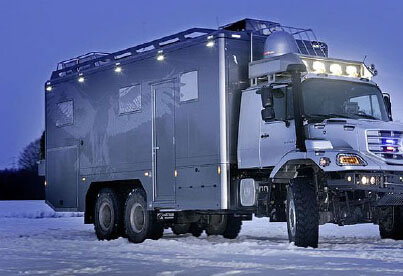

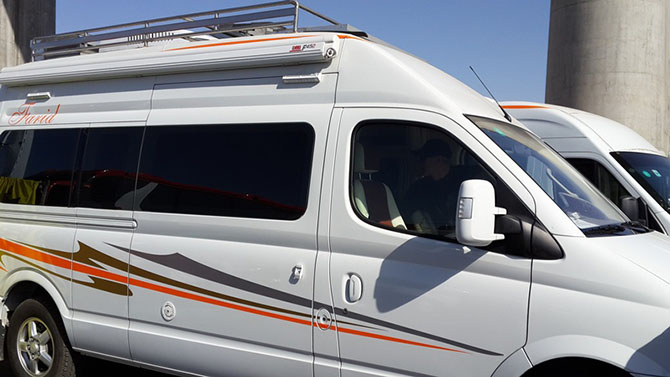

The awning entrance lamp is commonly used in shelters, cabins, motor homes, caravans, refrigerator cars, special vehicles in mines, and other specialized applications.
