LED Work Lamp: 4x4 Series

Description
Designed with patented technology, CATA's 4x4 series LED work lamps feature a higher efficiency and energy conservation than traditional LEDs with TIR lenses. A precision die cast aluminum base ensures an excellent heat dissipation, and a longer service life.

Product selection:
  • 4Q4
  • 4Q4-SP
  • 4Q4-M
  • 4Q4E
  • P-4Q4
  • 4Q4-F

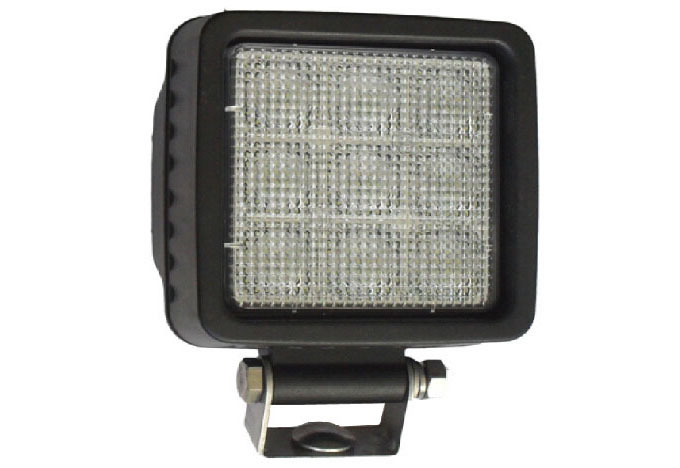

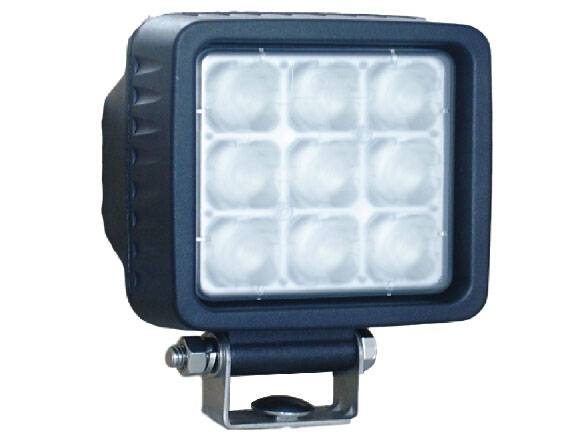

4Q4
Inquiry Form

Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 9×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1000lm

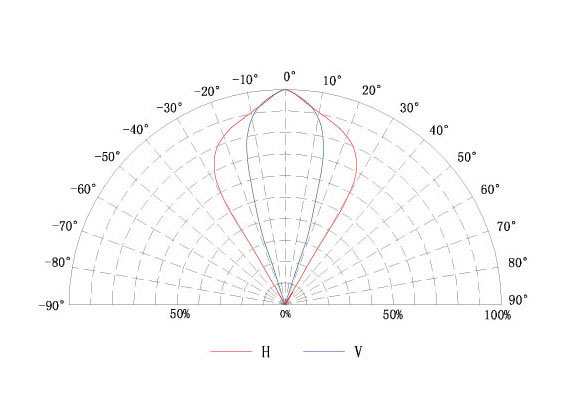

Light Emitting Angle: H40°/V30°
Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
Power: 15W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket + bolts + screws
IP 67,CE Approved

4Q4-SP
Inquiry Form

Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 9×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1000lm
Light Emitting Angle: ～5°
Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
Power: 15W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket + bolts + screws
IP 67,CE Approved

4Q4-M
Inquiry Form

Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 9×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1000lm
Light Emitting Angle: H40°/V30°
Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
Power: 15W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket + bolts + screws
IP 67,CE Approved

4Q4E
Inquiry Form

Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 9×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1000lm
Light Emitting Angle: H40°/V30°
Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
Power: 15W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket + bolts + screws
IP 67,CE Approved

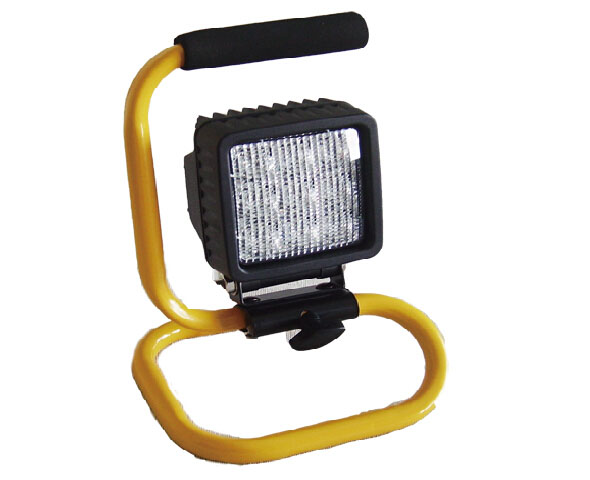

P-4Q4
Inquiry Form

Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 9×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1000lm
Light Emitting Angle: H40°/V30°
Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
Power: 15W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket + bolts + screws + portable handle
IP 67,CE Approved

4Q4-F
Inquiry Form

Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 9×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1000lm
Light Emitting Angle: H80°/V30°
Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
Power: 15W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket + bolts + screws
IP 67,CE Approved

Applications:

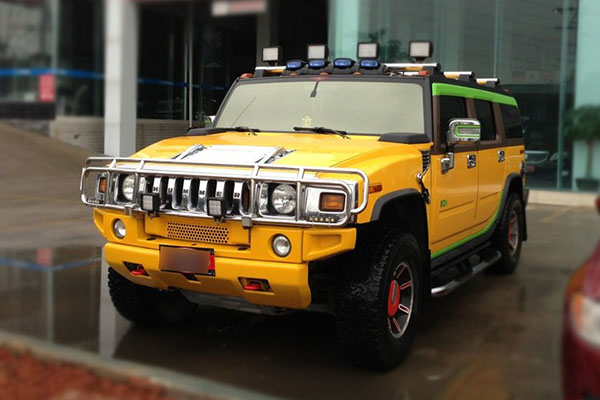

The LED mounted lamp is widely used in engineering vehicles, mining machinery, agricultural machinery, fork trucks, dune buggies and other specialized vehicles.
