Round LED Work Lamp

Description
The round LED work lamp uses an alloy frame, which makes it easy to install and renders the LED lamp both waterproof and shockproof. The round LED lamp gives a greater visibility to street signal signs and pedestrians with its wide range of light. It also expands the visibility range of drivers, providing extra security while driving.

  • R4-06
  • R3-04
R4-06
Inquiry Form

Specification:
Operating Voltage: DC10~33V
Operating Temperature: -40℃~ 80℃
Light Source: 6×3W high efficiency LEDs
Luminous Flux: 900lm
Light Emitting Angle: 30° or 60°(optional)
Current: 0.9Amps @ DC12V, 0.45Amps @ DC24V
Power: 10W (max.)
Lens: UV resistant lens
Housing: black die-casting aluminum housing
IP 67

Applications
The LED work lamp is used for front fog lights, driving lights, and work lights, construction lamps, assisting lamps and reversing lamps.

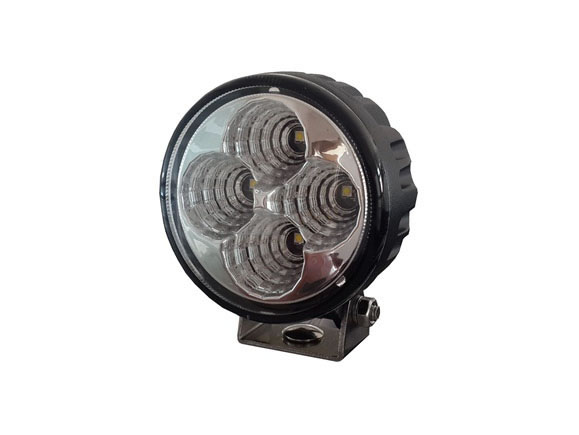

R3-04
Inquiry Form

Specification
Operating Voltage: DC10~33V
Operating Temperature: -40~80℃
Light Source: 4*3W LED, CRI＞80
Light Color: pure white: 6000~6500K; warm white: ~3000K; nature white: 4000~4500K
Luminous flux: ~650lm
Power: ~7W
Working current: 0.56A@12VDC; 0.28A@24VDC
Aluminum alloy die-cast housing with powder coated finish, stainless steel bracket
IP67 protection grade
CE-EMC compliance

Applications
The LED work lamp is used for trucks, trailers, engineering vehicles, mining equipment, agriculture machinery, forklift trucks, dune buggies or other special vehicles.
