LED Work Light Bar

Description

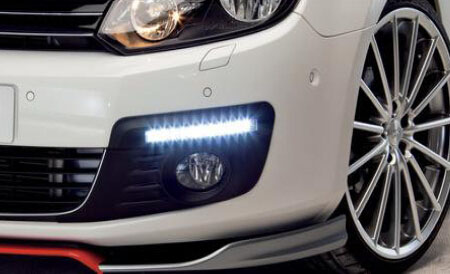

The LED work light bar has a service lie of up to 3,000 hours. This work light bar is easier and faster to install over other light bars with the use of a screw on the bottom. This particular LED light is suitable for car modifications.

Product selection:
  • L Series
  • LM Series
L Series
Inquiry Form
Specification:
P/N Dimension(mm) LEDs Watts Amps/12VDC Amps/24VDC Lumens
L-36 252.2*138.2*78.4 12 36 2.25 1.13 2520
L-72 405.2*138.2*78.4 24 72 4.5 2.25 5040
L-120 609.2*138.2*78.4 40 120 7.5 3.75 8000
L-180 864.2*138.2*78.4 60 180 10.5 5.25 12000

Operating Voltage: 10~30VDC
Operating Temperature: -40℃~65℃
Light Source: high light efficiency Cree LEDs
Light Color: pure white 6000K
Light Emitting Angle: 60° flood, 12° spot
Toughened glass + aluminum die casting housing
Continuous Working Life: 30,000 hours
IP67

LM Series
Inquiry Form
Specification:
P/N Dimension(inch) LEDs Watts Amps/12VDC Amps/24VDC Lumens
LM-18 3.90 6 18 1.125A 0.56A 1260
LM-36 6.57 12 36 2.25A 1.13A 2520
LM-54 9.25 18 54 3.375A 1.69A 3780
LM-72 12.0 24 72 4.5A 2.25A 5040
LM-90 14.57 30 90 5.6A 2.8A 6250
LM-108 17.24 36 108 6.75A 3.38A 7560
LM-126 19.90 42 126 7.88A 3.94A 8820

Operating Voltage: 10~30VDC
Operating Temperature: -40℃~65℃
Light Source: high light efficiency CREE LEDs
Light Color: pure white 6500K
Light Emitting Angle: 40° flood, 15° spot
PC lens + aluminum die casting housing
Continuous Working Life: 30,000 hours
IP67

Applications
LED work light bars are most often used in trucks, trailers, engineering vehicles, snowplows, forklifts, excavators and agricultural equipment.
