Other LED Work Lamps

Description
We use thickly reinforced PC lenses on our LED work lamps in order to avoid scratches on the lamp. The lamp body is durable and resistant to fading, due to its spray coating, and is suitable for nearly any type of vehicle.

Product selection:
  • W-AM02
  • W-DRL06
W-AM02
Inquiry Form

Specification:
Operating Voltage: 10~33VDC
Operating Temperature:-40~65℃
Light Source: 6 LED 1~3Whigh efficiency high power LED, CRI:Ra＞80
Luminous flux: 800lm
Power consumption:~9Wmax Operating current: 0.7mA@12VDC; 0.4mA@24VDC

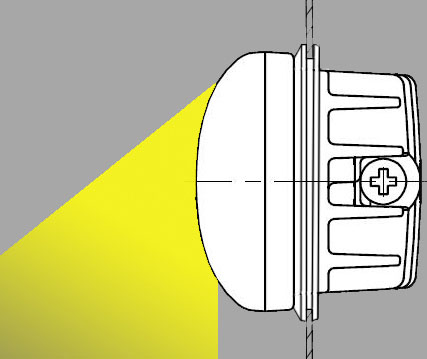

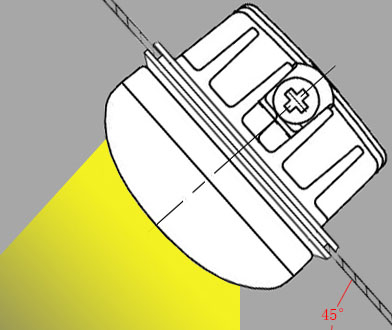

the undershot optical design，optional under angle could be 45 degrees（P/N: W-AM02-45）or 90 degrees(P/N: W-AM02-90, Light Emitting Angle: H120°/60°V)
IP67
Fixed: Installation1-adjustable bracket; Installation2--Grommet

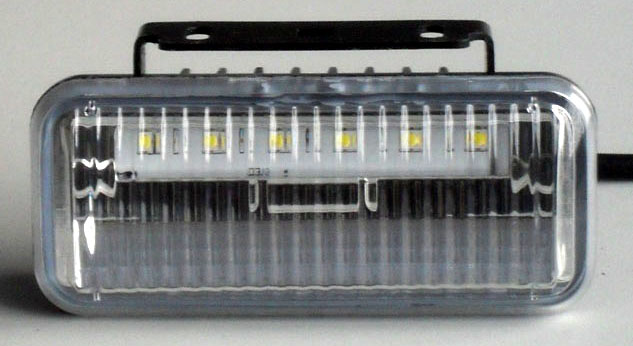

W-DRL06
Inquiry Form

Specification:
Operating Voltage: 10~33VDC
Operating Temperature:-40~65℃
Light Source: 6 LED 1~3W high efficiency and high power LED'CRI:Ra＞80
Light Color (optional): ~3000K warm white;400~4500K nature white;6000~6500K pure white
Luminous flux:750lm
Light Emitting Angle: H80°/50°V
Operating current:0.65mA@12VDC; 0.35mA@24VDC'Power~8W
IP67
Fixed:With adjustable fixed bracket

Applications
LED work light bars are widely used on trucks, trailers, engineering vehicles, forklifts, excavators, agricultural equipment and ships.
